Beer Storage Tank

In order to get the matured and flavoured beer , it is very poluar to store the beer in the Beer Bright tank for longer time , and before selling you also can supplement the carbon dioxide (CO2) into the beer with the carbonation stone .

Straight Beer Storage tank Informations:

1. Material : stainless steel Korea Pohang Brand;

2. Finish : Mirror , 2B , brushed SUS304, red copper outter jacket;

3. Welding : Arc Argon protection welding device ;

4. double jacketeted tank with cooling jacket & insullation , can be singal or double domed dish head;

5. Internal tank polishing up to 0.4Um , also the welding joint polishing up to 0.4Um ;

6. 48 hours 0.3Mpa pressure testing and water leakage testing for the tank body & cone and cooling jacket;

7. Insulation : Polyurethane foam with good heat preservation function;

8. Certification : CE , ISO9001 and PED ( Pressure Equipment Device)

9. can be customized

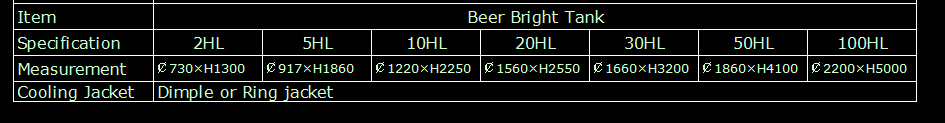

Technical Parameter

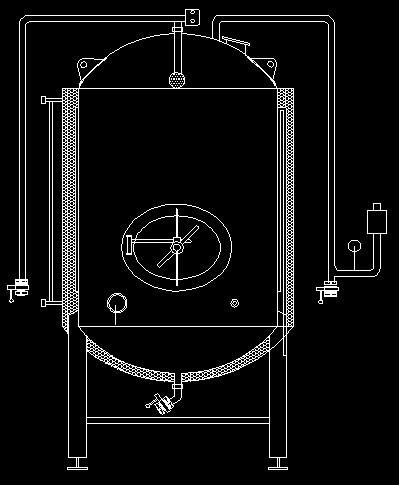

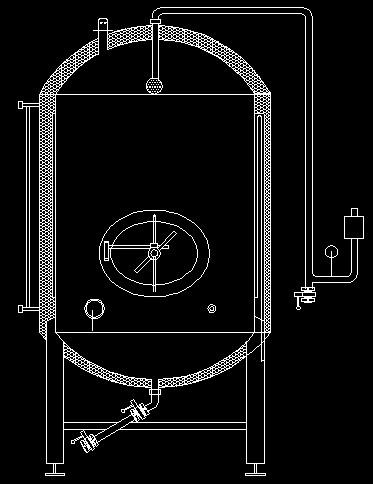

Outline drawings for Straight beer bright tank

Outline drawings for horizontal Beer Bright Tank
